Toro 79167 48in Vac-Bagger, TimeCutter ZX Riding Mowers (Serial #: 280000001 - 280999999) Parts Diagram
Diagrams:
Diagram:
Bag Frame and Mount Assembly
Bag Frame and Mount Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
93-1623
93-1623
|
|||
|
|
114972-03
114972-03
|
|||
|
|
3230-1
3230-1
|
|||
|
|
114973-03
114973-03
|
|||
|
|
114974-03
114974-03
|
|||
|
|
3296-29
3296-29
|
|||
|
|
104-3692-03
104-3692-03
|
|||
|
|
3296-42
3296-42
|
|||
|
|
104-8006-03
104-8006-03
|
|||
|
|
3256-22
3256-22
|
|||
|
|
321-6
321-6
|
|||
|
|
321-10
321-10
|
|||
|
|
105-1940-03
105-1940-03
|
|||
|
|
322-10
322-10
|
|||
|
|
105-1941
105-1941
|
|||
|
|
9335064
9335064
|

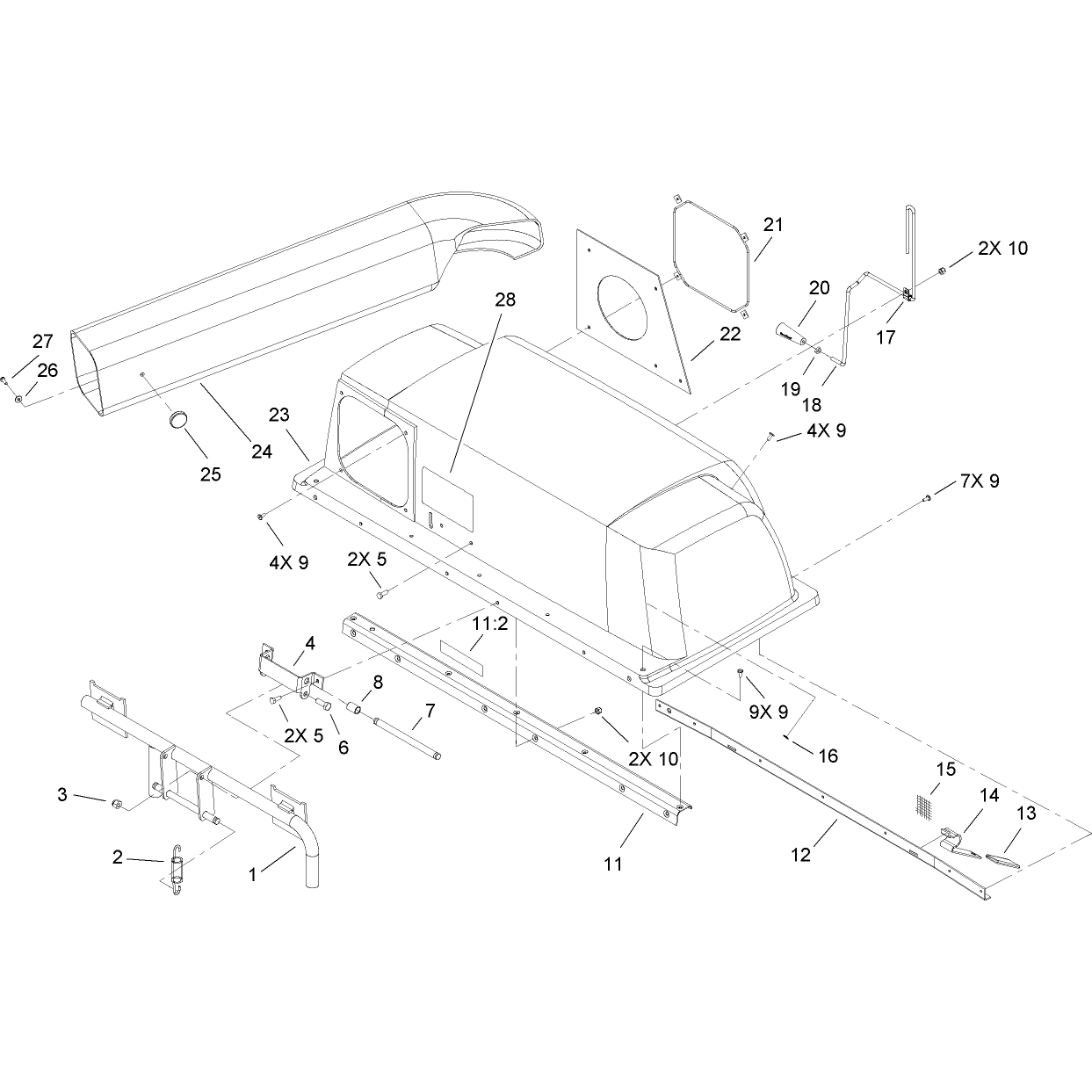

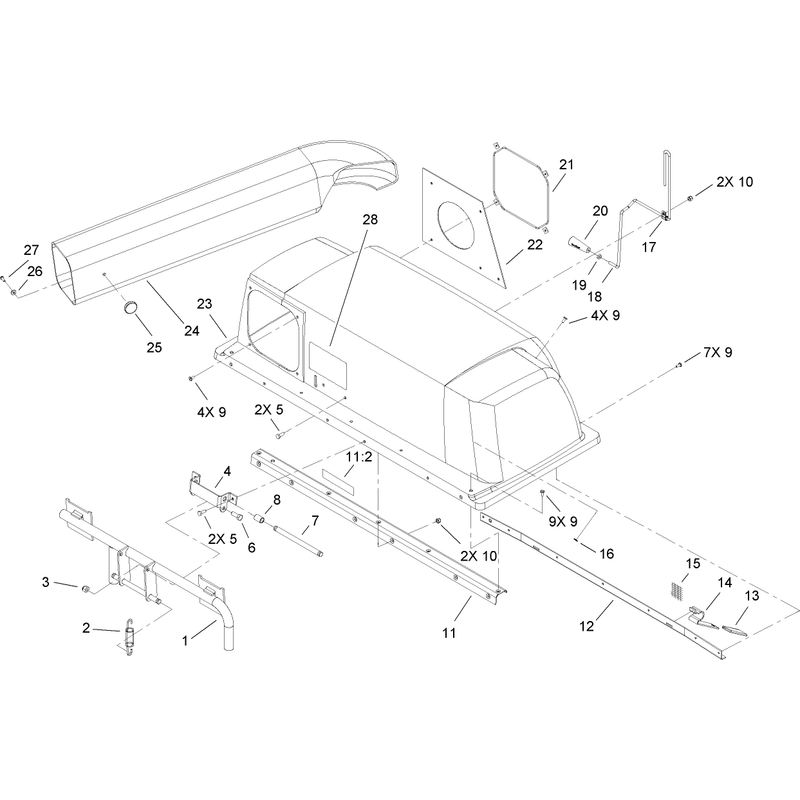

Bagger Hood and Hinge Assembly
Bagger Hood and Hinge Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
114955-03
114955-03
|
|||
|
|
114962
114962
|
|||
|
|
3296-39
3296-39
|
|||
|
|
114961-03
114961-03
|
|||
|
|
321-4
321-4
|
|||
|
|
323-6
323-6
|
|||
|
|
114960
114960
|
|||
|
|
9790944
9790944
|
|||
|
|
114439
114439
|
|||
|
|
3296-42
3296-42
|
|||
|
|
88-9570
88-9570
|
|||
|
|
93-7320
93-7320
|
|||
|
|
92-1736-03
92-1736-03
|
|||
|
|
115880
115880
|
|||
|
|
115481-03
115481-03
|
|||
|
|
114967
114967
|
|||
|
|
9202704
9202704
|
|||
|
|
2412-91
2412-91
|
|||
|
|
114969
114969
|
|||
|
|
3218-1
3218-1
|
|||
|
|
118320
118320
|
|||
|
|
114966
114966
|
|||
|
|
117239
117239
|
|||
|
|
92-6752
92-6752
|
|||
|
|
108-8599
108-8599
|
|||
|
|
233-68
233-68
|
|||
|
|
3256-49
3256-49
|
|||
|
|
32144-8
32144-8
|
|||
|
|
93-7329
93-7329
|
Bagger Weight Assembly
Bagger Weight Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
104-8029
104-8029
|
|||
|
|
67-7320
67-7320
|
|||
|
|
3234-18
3234-18
|
Blower Deck Mounting Assembly
Blower Deck Mounting Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
110-6505
110-6505
|
|||
|
|
321-3
321-3
|
|||
|
|
110-6503
110-6503
|
|||
|
|
110-1868
110-1868
|
|||
|
|
3234-26
3234-26
|
|||
|
|
110-6502
110-6502
|
|||
|
|
3256-3
3256-3
|
|||
|
|
3296-29
3296-29
|
|||
|
|
104-8003-01
104-8003-01
|
|||
|
|
322-3
322-3
|
|||
|
|
106-8279-03
106-8279-03
|
|||
|
|
79-7000-03
79-7000-03
|
|||
|
|
32128-20
32128-20
|
|||
|
|
3230-1
3230-1
|
|||
|
|
108-8563-03
108-8563-03
|
|||
|
|
9266714
9266714
|
|||
|
|
3296-42
3296-42
|
|||
|
|
3256-24
3256-24
|
|||
|
|
9152366
9152366
|

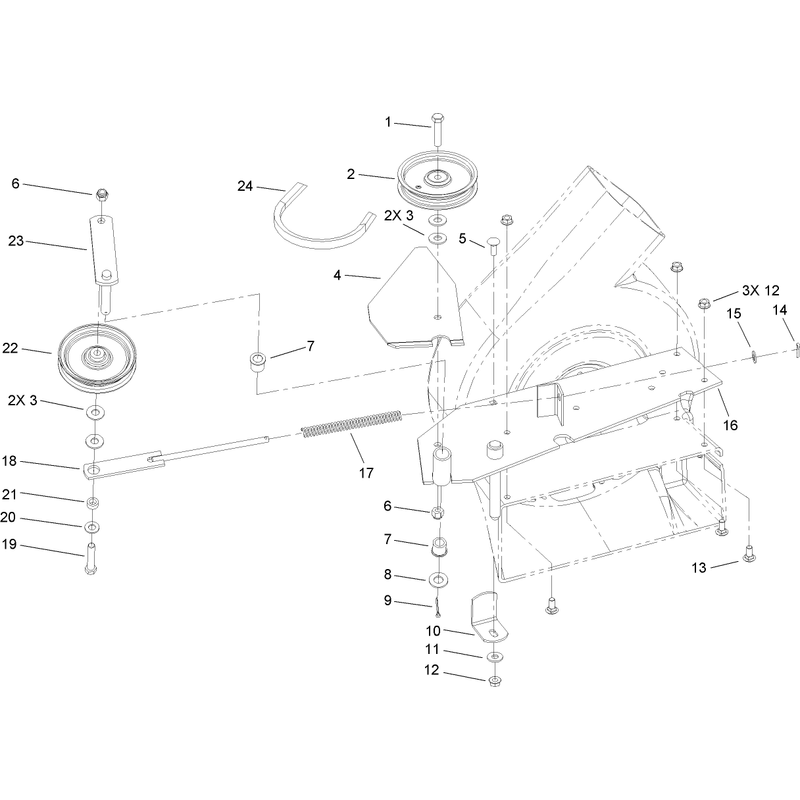

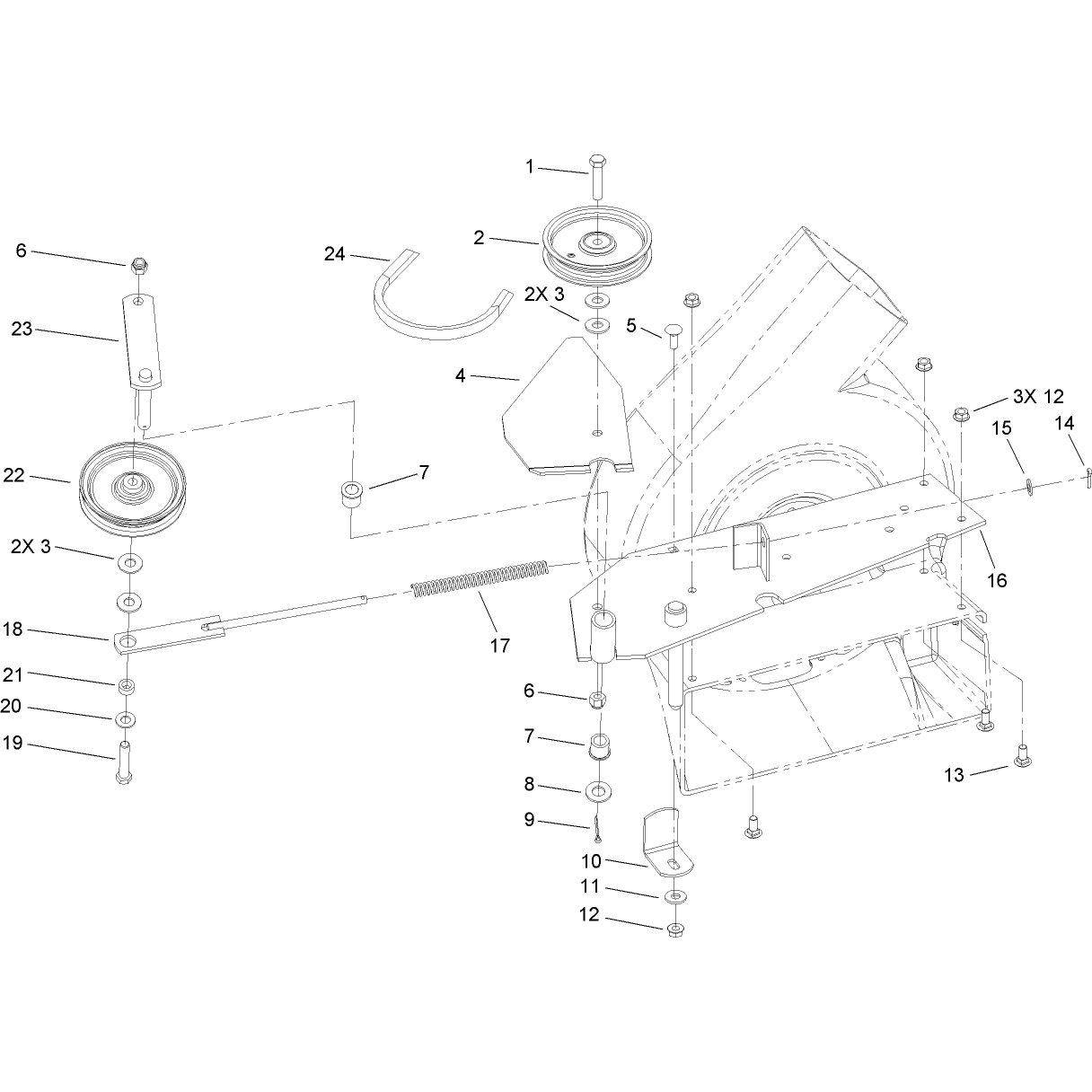

Blower Drive Assembly
Blower Drive Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
323-9
323-9
|
|||
|
|
93-1622
93-1622
|
|||
|
|
3256-4
3256-4
|
|||
|
|
79-7280-03
79-7280-03
|
|||
|
|
3230-16
3230-16
|
|||
|
|
3296-39
3296-39
|
|||
|
|
100284
100284
|
|||
|
|
3256-26
3256-26
|
|||
|
|
3272-7
3272-7
|
|||
|
|
79-7440
79-7440
|
|||
|
|
3256-3
3256-3
|
|||
|
|
32128-20
32128-20
|
|||
|
|
3230-1
3230-1
|
|||
|
|
3272-10
3272-10
|
|||
|
|
3256-23
3256-23
|
|||
|
|
79-1380-03
79-1380-03
|
|||
|
|
79-7110
79-7110
|
|||
|
|
79-2020
79-2020
|
|||
|
|
323-10
323-10
|
|||
|
|
3256-24
3256-24
|
|||
|
|
107213
107213
|
|||
|
|
92-7099
92-7099
|
|||
|
|
79-1970
79-1970
|
|||
|
|
79-7490
79-7490
|

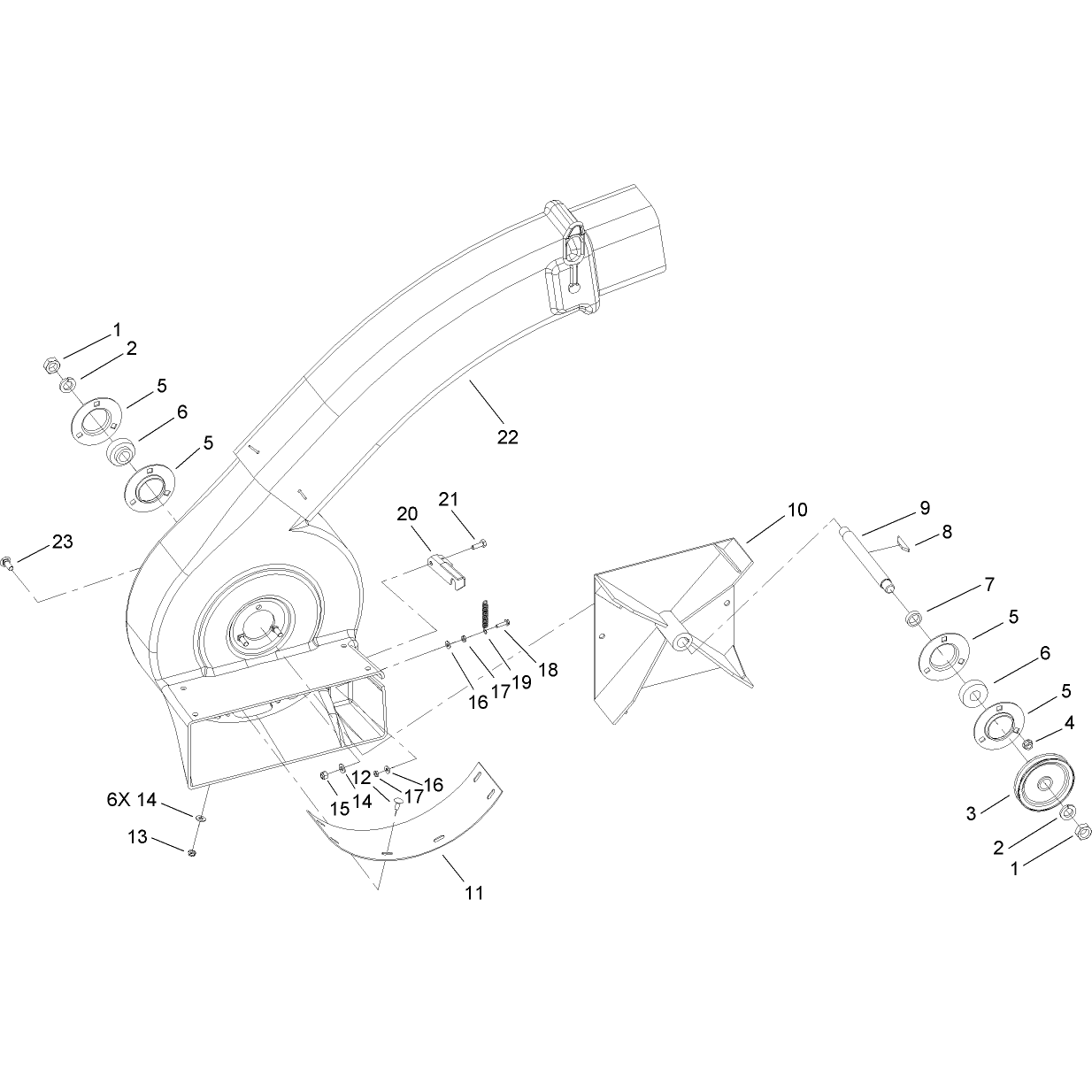

Blower Housing and Extension Assembly
Blower Housing and Extension Assembly
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
3220-6
3220-6
|
|||
|
|
3253-8
3253-8
|
|||
|
|
79-1460
79-1460
|
|||
|
|
32128-20
32128-20
|
|||
|
|
251-341
251-341
|
|||
|
|
251-288
251-288
|
|||
|
|
7038
7038
|
|||
|
|
3257-40
3257-40
|
|||
|
|
79-1470
79-1470
|
|||
|
|
79-4300-03
79-4300-03
|
|||
|
|
79-7170-03
79-7170-03
|
|||
|
|
3229-11
3229-11
|
|||
|
|
3296-56
3296-56
|
|||
|
|
3256-22
3256-22
|
|||
|
|
3296-42
3296-42
|
|||
|
|
3256-14
3256-14
|
|||
|
|
3217-26
3217-26
|
|||
|
|
32105-13
32105-13
|
|||
|
|
79-7390
79-7390
|
|||
|
|
79-7230-03
79-7230-03
|
|||
|
|
321-4
321-4
|
|||
|
|
108-9564
108-9564
|
|||
|
|
3230-16
3230-16
|

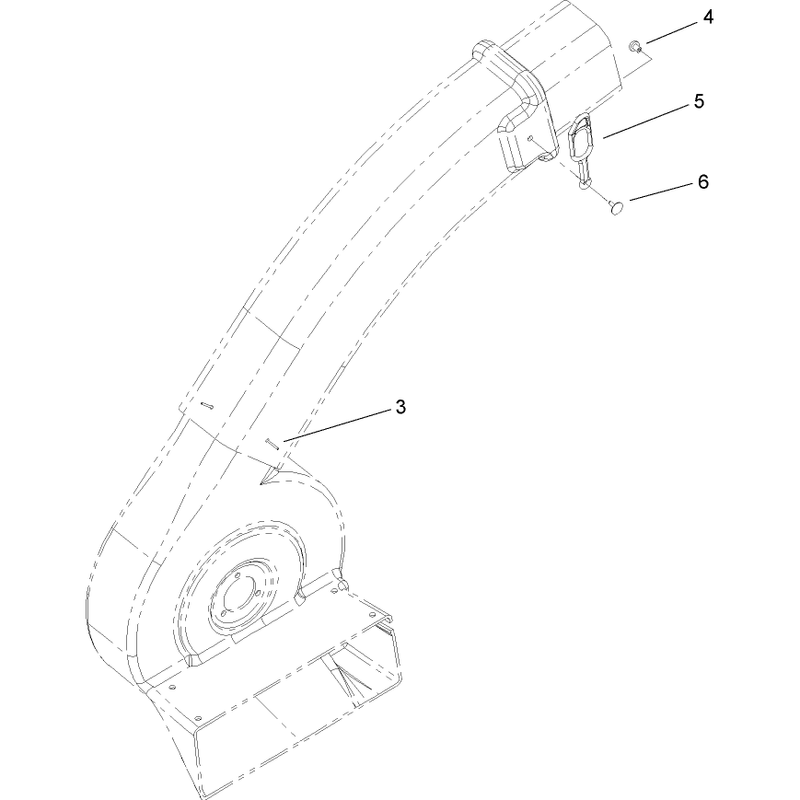

Blower Housing Assembly No. 108-9564
Blower Housing Assembly No. 108-9564
| Sequence Number | Image | Product | Price | Add to cart |
|---|---|---|---|---|
|
|
107-9104
107-9104
|
|||
|
|
22-9741
22-9741
|
|||
|
|
82-5690
82-5690
|
|||
|
|
3290-479
3290-479
|
